Geolocation

The module sv-geolocation is an iTop extension to add a new attribute type called AttributeGeolocation to provide geographic coordinates. This new attribute type is added to the Location class as a new field. The module also provides a new dashboard dashlet GeoMap which adds an interactive map.

Installation

Place this in the extensions folder of your iTop instance and run iTop setup again. Be sure to enable the extension during setup.

Configuration

After installation, it is possible to change some settings in order to let this module fully function.

provider

Specify the provider you want to use for interactive maps.

• GoogleMaps
• MapLibre
  • MapTiler
  • OpenStreetMap
  • MapQuest

api_key

Depending on the provider you are using, you might need to enter the API key.

How to get API keys for:

• Google Maps
• MapTiler
• MapQuest

staticmapurl

This value depends on which map provider (GM, OSM, …) you want to use for thumbnails. It only needs to be set if you want to override the default behaviour.

Depending on each map provider, there are several parameters to give. The following parameters will be filled in:

1. Latitude from the object.
2. Longitude from the object.
3. Width from datamodel.
4. Height from datamodel.
5. API key from configuration.
6. Zoom from configuration.

Example values for staticmapurl:

• Google Maps: https://maps.googleapis.com/maps/api/staticmap?markers=%f,%f&size=%dx%d&key=%s.
• MapQuest: https://www.mapquestapi.com/staticmap/v5/map?locations=%f,%f&size=%d,%d@2x&key=%s&zoom=%d
• MapTiler: https://api.maptiler.com/maps/bright-v2/static/auto/%3$dx%4$d@2x.png?markers=%1$f,%2$f&key=%5$s

Note that you can also use QR Code Generator as thumbnail generator. The resulting value for staticmapurl then looks like: https://api.qrserver.com/v1/create-qr-code/?data=geo:%f,%f&size=%dx%d

style

When using a MapLibre provider, you can use a custom style specification. The value is either a URL to the style JSON file or a representation of the style.

The module has default values for the following providers:

• MapTiler: https://api.maptiler.com/maps/bright-v2/style.json?key=YOUR_MAPTILER_API_KEY
• OpenStreetMap
• MapQuest

default_latitude

This is the default latitude when a new dashlet is displayed.

default_longitude

This is the default longitude when a new dashlet is displayed.

default_zoom

This is the default zoom for dashlet maps and for static maps. Note that by default, the static map from Google Maps have a dynamic zoom level. If you want a fixed zoom level, you will need to reflect this in the parameter staticmapurl.

display_coordinates

This value specifies if the coordinates of the geolocation also should be shown under the thumbnail. This is enabled by default. Note that when you don’t have thumbnails, the coordinates will always be displayed.

XML Data Model Reference

Field type is AttributeGeolocation.

Definition

• sql (mandatory) The column used to store the value into the MySQL database.
• default_value (mandatory) The default value (can be specified as an empty string).
• is_null_allowed (mandatory) Set to “true” to let users leave this value undefined, “false” otherwise.
• width (optional) Width of the static image, in pixels. Defaults to 200.
• height (optional) Height of the static image, in pixels. Defaults to 150.

Example

<field id="geo" xsi:type="AttributeGeolocation">
    <sql>geo</sql>
    <default_value/>
    <is_null_allowed>true</is_null_allowed>
    <width>200</width>
    <height>150</height>
</field>

XML Dashboard Reference

Dashlet type is DashletGeoMap.

Definition

• rank (mandatory) Display rank.
• height (optional) Height of the interactive map. Defaults to 600.
• search (optional) Whether to activate address search. Defaults to “false”.
• query (mandatory) The OQL query to select the objects to be placed on the map.
• attribute (mandatory) The geolocation attribute to use for placing the object on the map.

Example

<dashlet id="1" xsi:type="DashletGeoMap">
    <rank>1</rank>
    <height>500</height>
    <search>true</search>
    <query>SELECT Location</query>
    <attribute>geo</attribute>
</dashlet>

Notifications

This module also adds some functions to choose the coordinate system when the attribute is used in notifications.

Representations

• $this->geo$ or $this->wgs_84(geo)$: Display the coordinates in EPSG:4326 (lat,lon).
• $this->rd(geo)$ or $this->rijksdriehoek(geo)$: Display the coordinates in EPSG:28992 (X,Y).
• $this->html(geo)$: HTML representation just like in the detail or list view.

Preview

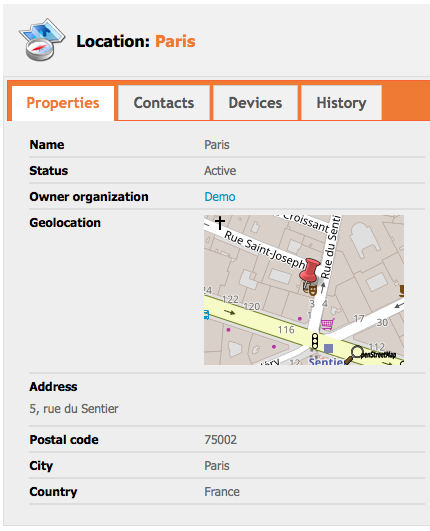

Location detail view

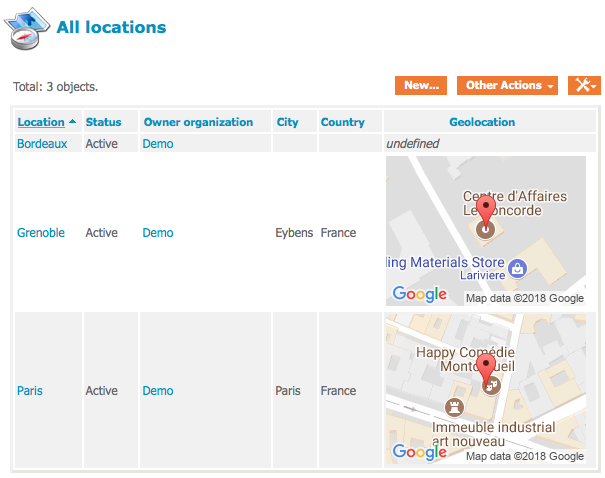

Location list view

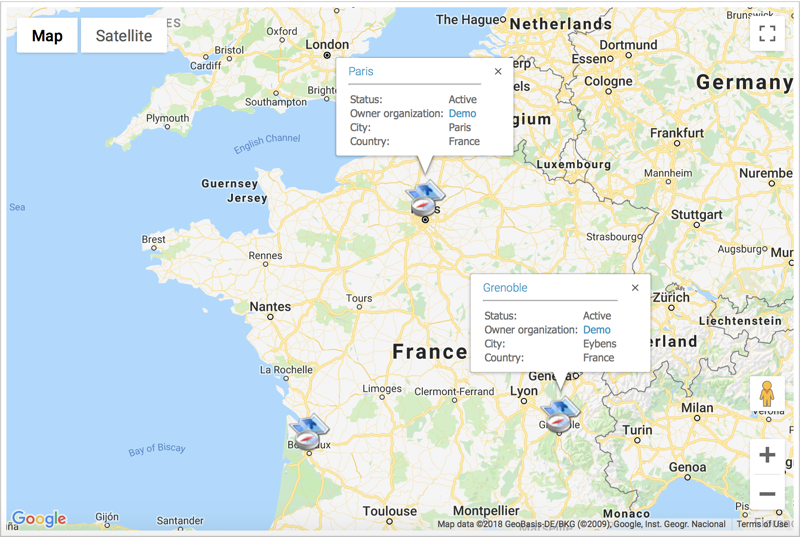

Dashboard Dashlet

Contribute

Translation

Translations can be submitted via Transifex. Please create a new issue if you want a new language to be added to the project.

This site is open source. Improve this page.
